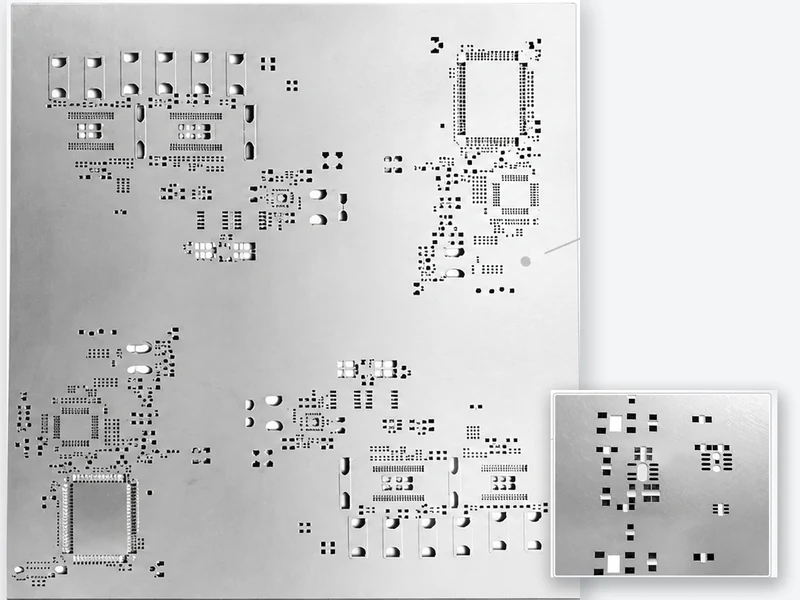

SMT stencils, laser-cut to your Gerber.
Framed, frameless and step stencils for PCB assembly. Send us your Gerber and we will quote the exact price — or configure a standard spec yourself and see the estimate immediately.
Fiber laser cutting, our workshop
Usable area 380 × 380 mm · Estimate only, freight not included — we confirm the exact price against your Gerber.
SMT stencil types
Covers almost every PCB assembly process.
Framed stencils

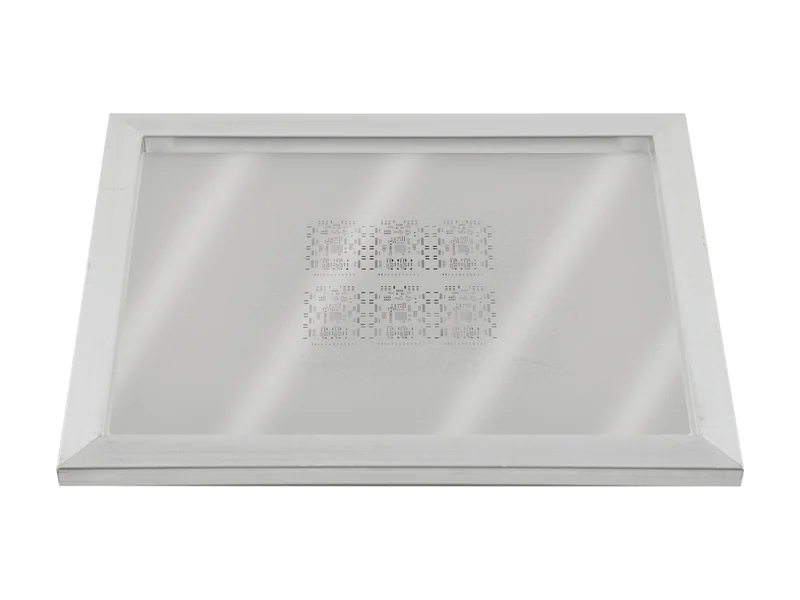

Stainless foil tensioned onto an aluminium frame, ready to drop into an automatic printer. The usual choice for production lines.
Frameless stencils

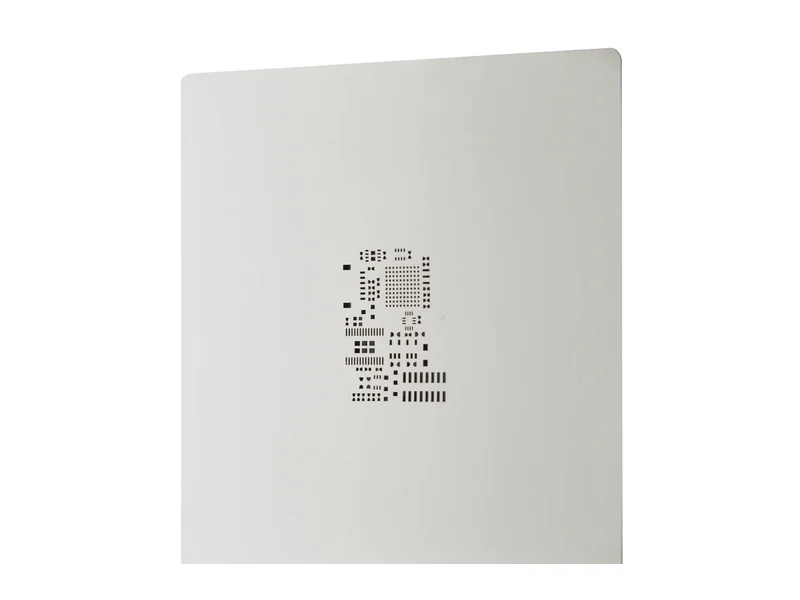

Bare laser-cut foil, shipped flat. The lowest cost option, and the usual pick for prototyping, low-volume builds and R&D testing.
Step stencils
Different foil thickness in different areas of one stencil, so mixed-technology boards with fine-pitch and through-hole parts print correctly in one pass.
Cut to your Gerber
Framed for production lines, frameless for prototyping, step for boards that mix fine-pitch and through-hole parts.

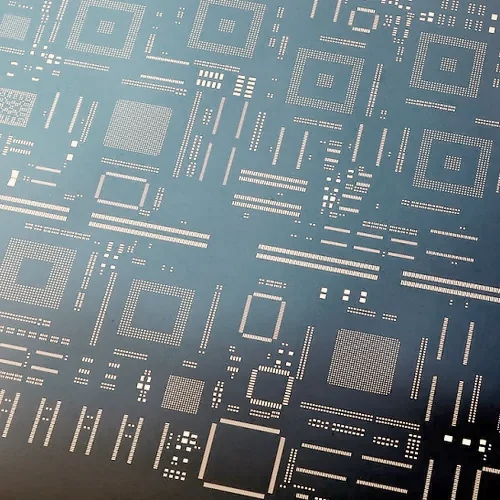

SUS304 · 0.08 – 0.30 mm · ±0.01 mm aperture tolerance

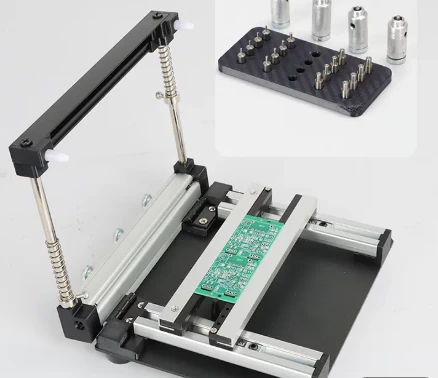

See full specificationsFrameless stencil printing table
For printing solder paste onto PCBs before assembly — R&D prototyping, repair and rework, and small-batch SMT production.
- The stencil lifts evenly after each print — less smearing on the board.
- Upgraded spring-loaded PCB sled: the foil rises cleanly after the squeegee pass instead of dragging across the pads.
- Multiple locating jigs — free positioning for different PCB sizes.
Priced by model and quantity — tell us your board size and how many you need.
Ask about this table| 10 × 10 | 15 × 15 | 20 × 20 | |
|---|---|---|---|
| Printing table size | 135 × 165 × 50 mm | 215 × 220 × 65 mm | 260 × 265 × 65 mm |
| Largest PCB (long side) | 65 × 120 mm | 115 × 170 mm | 165 × 220 mm |
| Effective print area | 55 × 80 mm | 100 × 130 mm | 150 × 180 mm |
| Printing speed | Manual | ||
| PCB thickness | 0.8 – 1.6 mm (shipped set to 1.2) | 0.8 – 2.0 mm, free lift | 0.8 – 2.0 mm, free lift |
| Machine weight | 750 g | 1680 g | 2010 g |
| Included accessories | 4" squeegee × 1 · Phillips screwdriver × 1 · hex key × 1 · magnetic locating posts × 2 | ||
From Gerber file to packed stencil

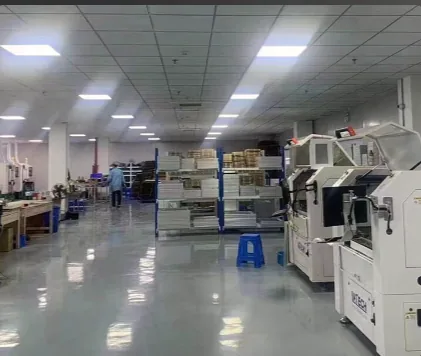

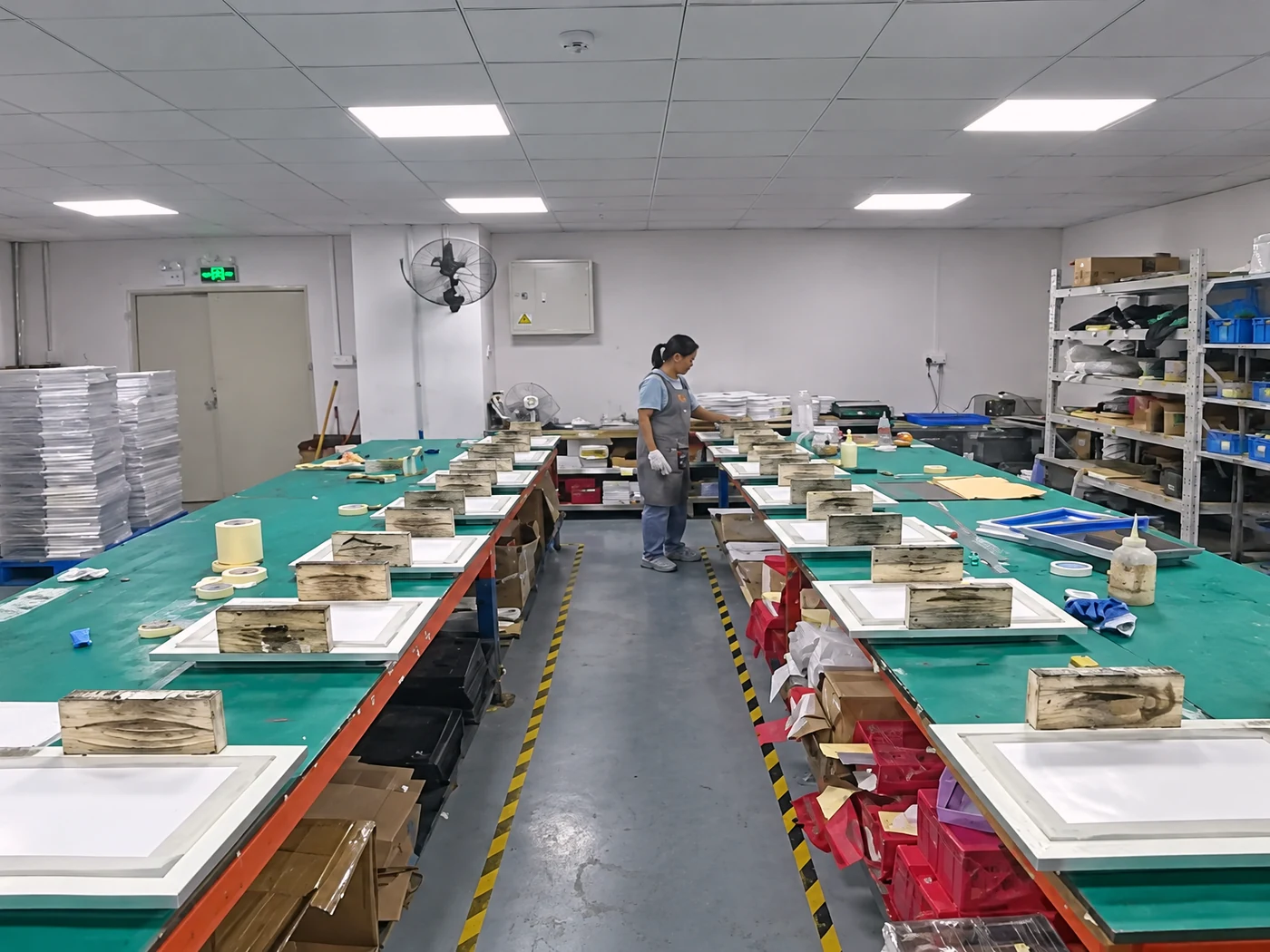

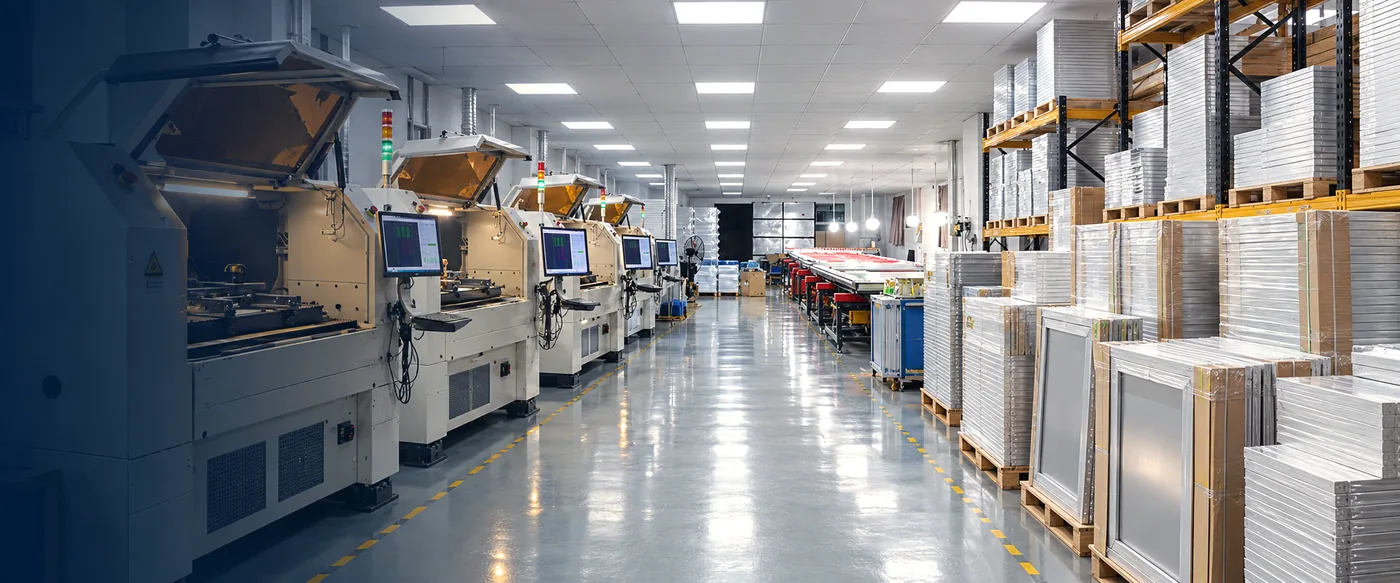

Every stencil is cut, tensioned and packed in our own workshop. These are photographs of the actual floor — not stock images.

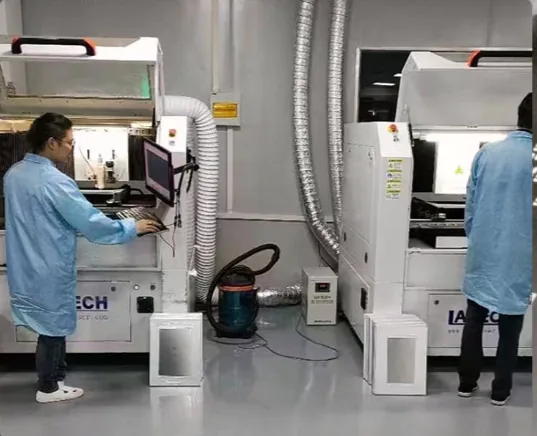

- Fiber laser cutting of stainless foil

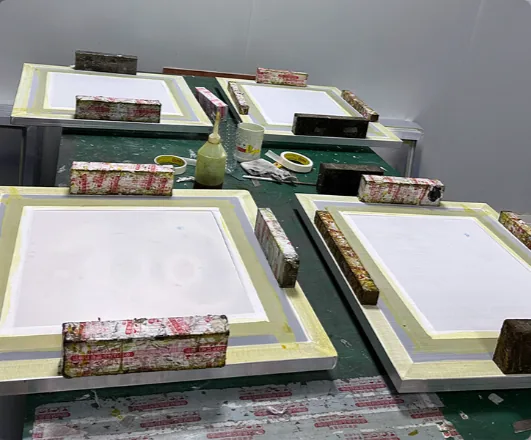

- Framing and mesh tensioning in-house
- Electropolishing and nano coating

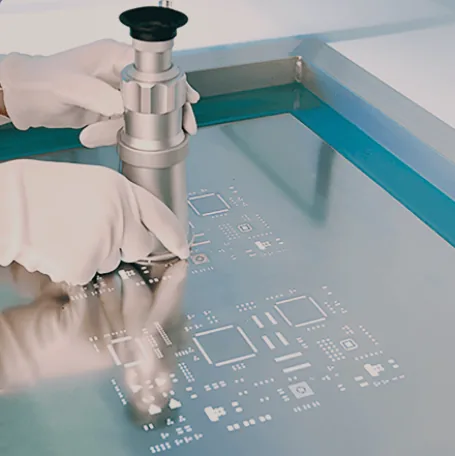

- Aperture inspection under magnification
- BGA reballing and IGBT stencils

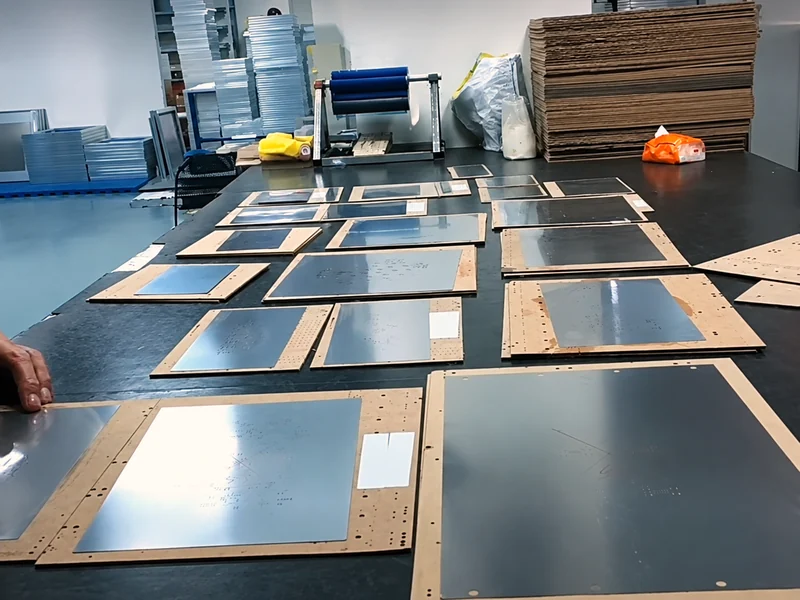

- Cleaning, packing and export shipping
Tell us the board you are printing and we will tell you which stencil it needs — even if that means sending you a thinner spec than you asked for.

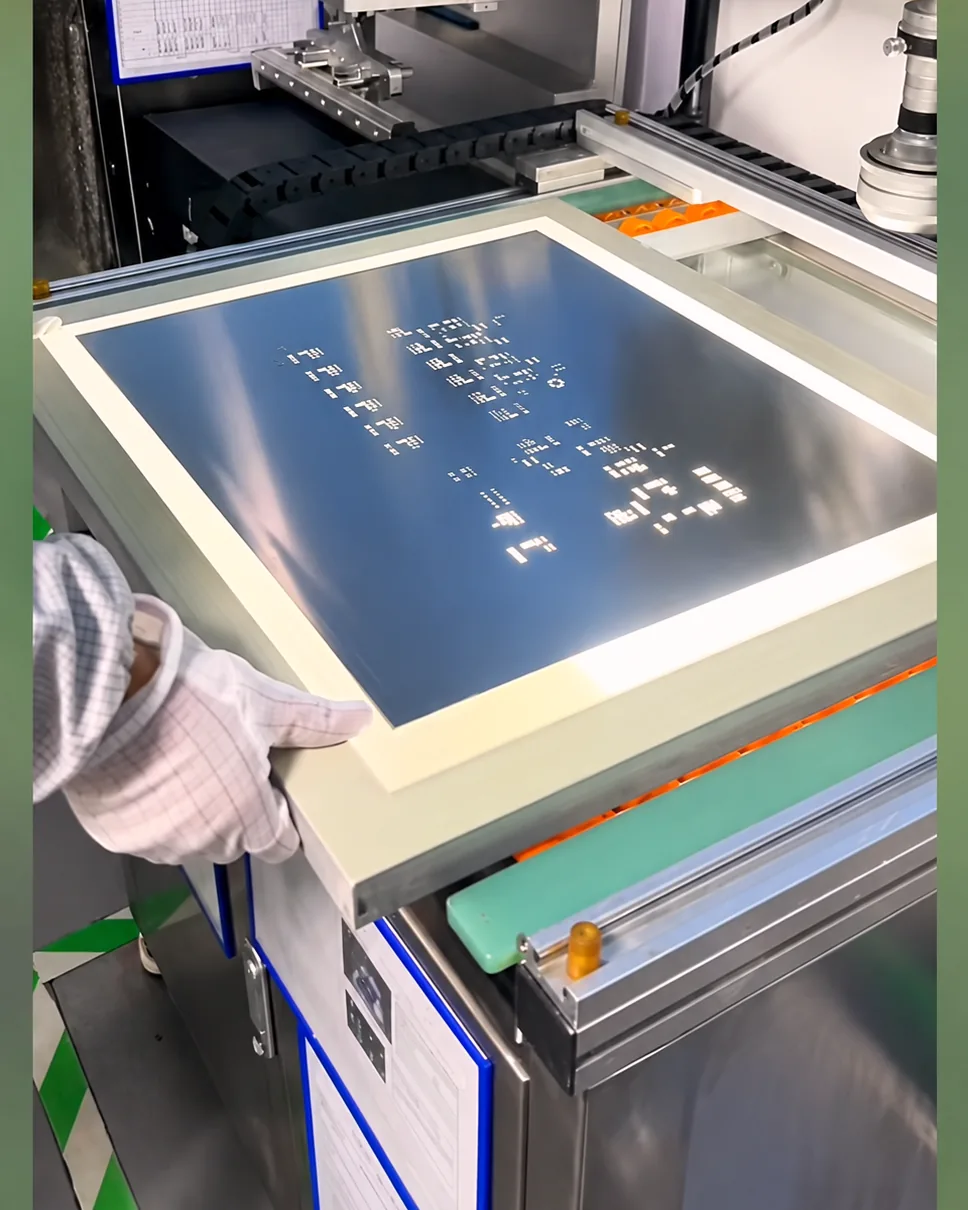

Stencil mounted for printing
Watch a stencil being cut

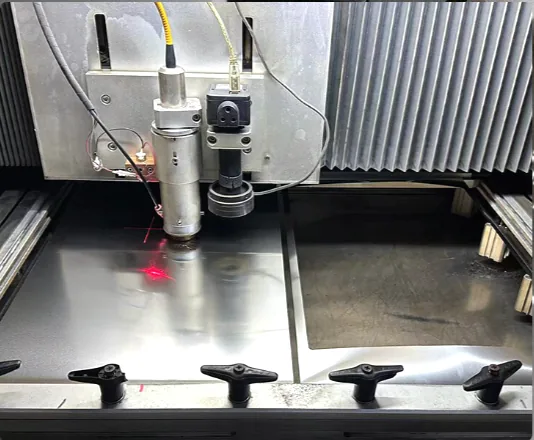

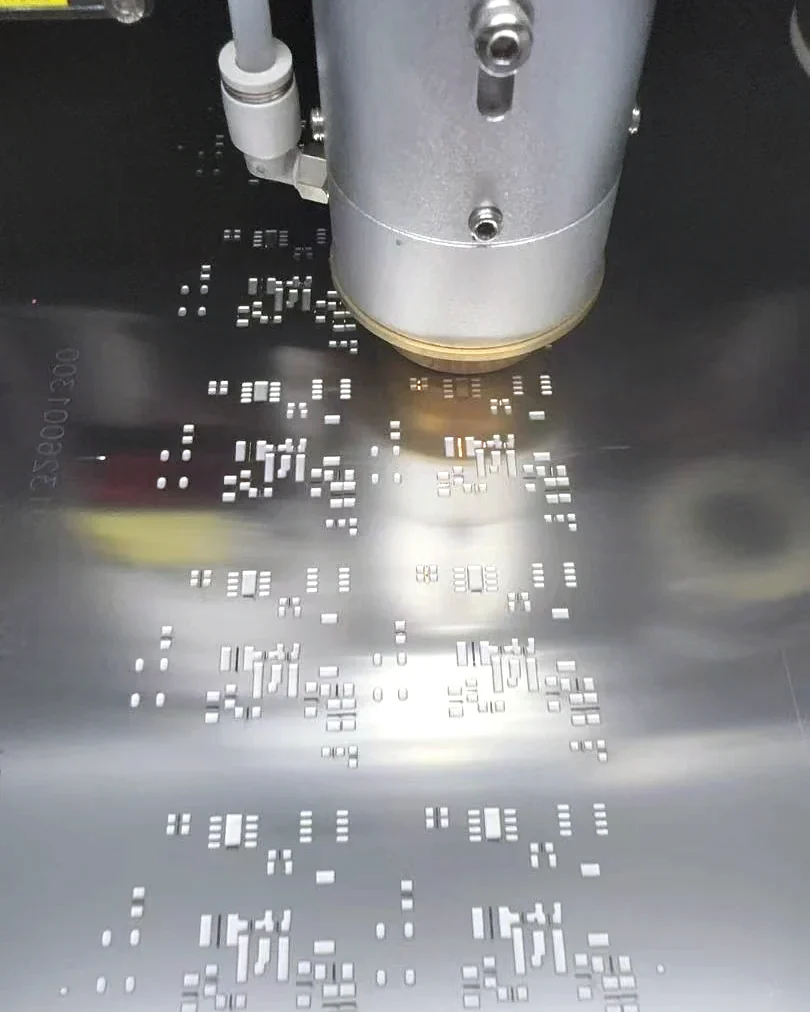

30 seconds on the workshop floor: the foil going into the machine, the fiber laser cutting the apertures, and the CAM file we cut from.
Filmed in our workshop.

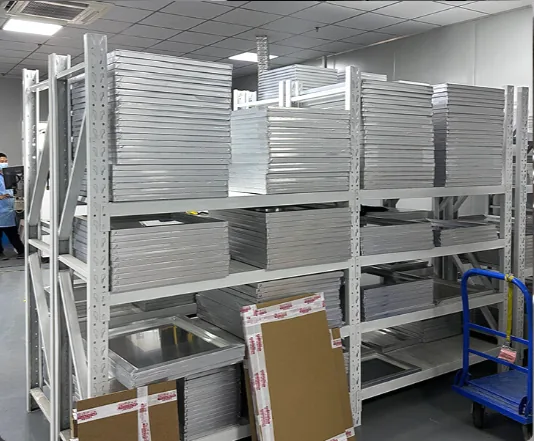

Cut, tensioned and packed in our own workshop
Laser-cut · 24-hour production at no extra charge · same-day dispatch on the rush service
Cut in-house
Every stencil is laser-cut, tensioned and packed on our own floor in Zhongshan.
48 h or 24 h, no surcharge
Pushed through faster at the same price. The 2-hour rush adds 20%.
±0.01 mm aperture tolerance
Tight enough for fine-pitch work and 01005 parts.
SUS304, 0.08–0.30 mm
Stainless foil, eight thicknesses in stock.

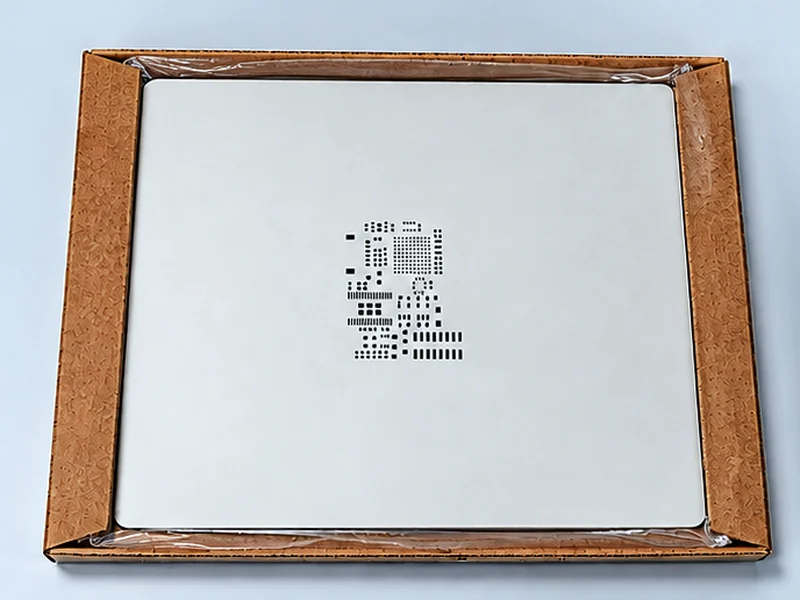

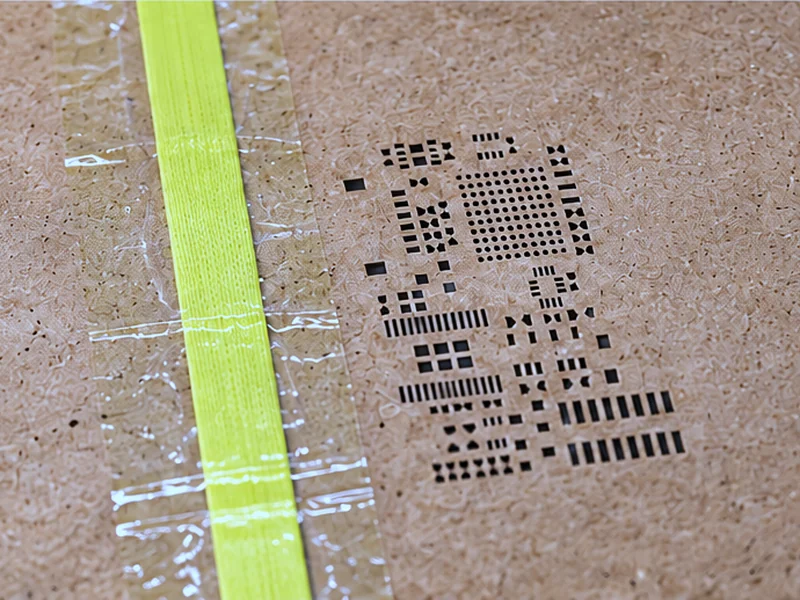

Packed for the trip

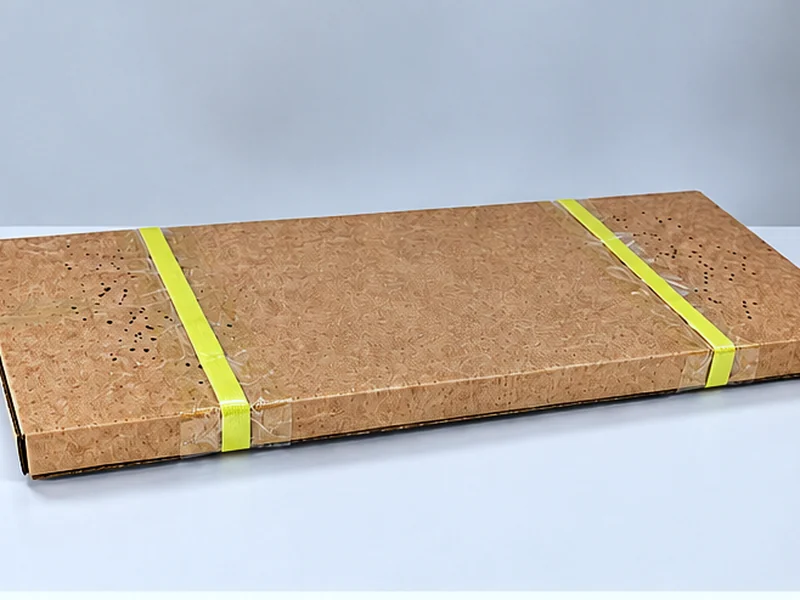

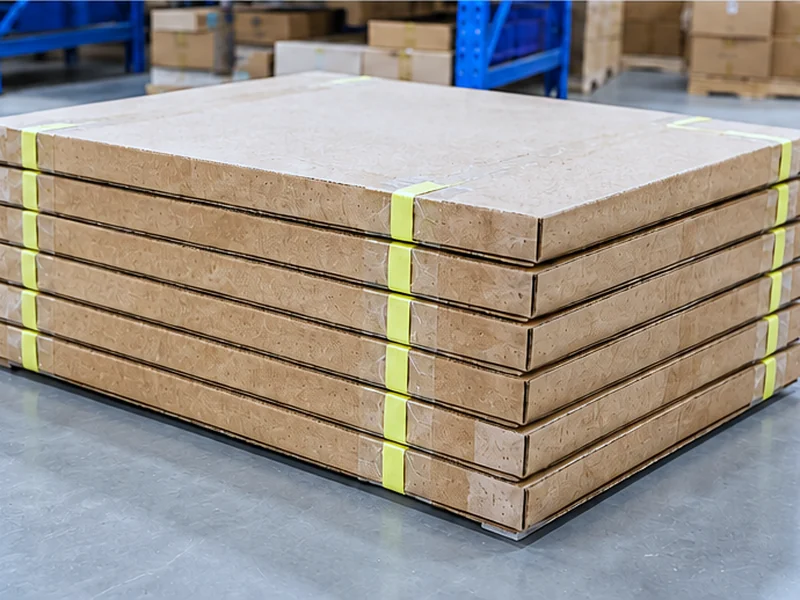

Boxed flat, strapped and film-wrapped; larger orders ship stacked. Freight is quoted together with your stencil — tell us the destination and we confirm it before you pay.
Understanding stencil specifications
A short guide to the options you choose when ordering. If you are unsure what your board needs, send us the Gerber file and we will advise.
What you can configure
ParametersThese are the options the quote page is built from. Change them there and the price changes with them.
Frame size
Stencils mount into the printer on a frame. Common sizes are 584 × 584, 550 × 650 and 736 × 736 mm, plus the 400 mm-wide series from 400 × 600 up to 400 × 1500 mm. Which one you need depends on your printer model and the largest board you run.
Foil thickness
Thinner foil deposits less solder paste. Values run from around 0.08 mm for fine-pitch work up to 0.30 mm for large through-hole joints. 0.12 mm is a common starting point for mixed boards.
Aperture and area ratio
Apertures are the openings the paste passes through. As a rule of thumb, the opening area should be at least two thirds of the aperture wall area, or paste will not release cleanly. This is what limits how fine a pitch a given foil thickness can print.
Not sure what to order?
Send us your Gerber file and tell us what you are assembling. We will tell you which stencil type and thickness suits the board, and quote it.
How ordering works
From your enquiry to your door in five steps.
Send your configuration
Pick your specifications on the quote page. The form builds a message you can send us on WhatsApp in one tap.
Confirm the price
We review the requirements and confirm the final price including freight, before anything is made.
Pay
We agree the payment method with you — PayPal (card or balance) or bank transfer (T/T). Production starts once it is settled.
Production
We cut your stencil and carry out the finishing operations your specifications call for.
Shipping
Dispatched by international courier with a tracking number, so you can follow it to your door.
Common questions
No matching question — send us a message and we will answer it directly.
What file do you need to make a stencil?
Gerber (RS-274X), ODB++ or your CAD output. If you only have a PDF or a drawing, send it anyway and we will tell you what else is needed. For repeat orders we keep your file on record, so you only need your previous order number.
How fast can you ship?
48-hour and 24-hour production carry no surcharge — we confirm against that day's schedule. Same-day 2-hour emergency dispatch is +20%. Tell us your deadline when you enquire and we will confirm before you commit.
Do you ship to my country?
We ship internationally by express courier. Freight is quoted together with your order so you see the full cost before paying, and we provide a tracking number once it is dispatched.
How do I pay?
We confirm the specifications and the freight first, then agree on payment with you. We accept PayPal (card or PayPal balance) and bank transfer (T/T) — for T/T we issue a proforma invoice with our bank details. Tell us what suits you and we will work it out.
Can I reorder the same stencil later?
Yes. Message us with your previous order number — we keep your file on record, so there is no setup work to redo and nothing to re-explain.
Which stencil type should I choose?
Framed stencils are ready to drop into an automatic printer. Frameless foil costs less and suits prototyping. Step stencils handle boards that mix fine-pitch and through-hole parts. If you are not sure, send us the board details and we will advise.
Which file formats do you accept?
Gerber RS-274X is the usual one, and ODB++ works too. What we need is the solder paste layer — in most exports that is GTP for the top side and GBP for the bottom, and some tools name the files .gtp, .gbp or .gbr. If you are not sure which file is which, send the whole export as a ZIP together with the board name and we will pick the right layer.
Which foil thickness do I need?
It follows the smallest feature on your board. As a rough guide: mixed boards with standard SMD parts usually start at 0.12 mm; parts around 0.4 mm pitch and below often go to 0.10 mm; the finest work goes down to 0.08 mm. If the board also has large through-hole joints that need more paste, that is what step stencils are for. Tell us the smallest part and its pitch and we will say which thickness suits it.
